Product brief description


No.ItemsSpec:
1Material

Thickness:0.5-2mm(according to the customer requirement)

Input width:1500mm(according to the customer requirement)

Effective width:1500mm

Shear length : 500-4000mm

material:aluminium,stainless steel sheets

2Power supply380V three-phase electricity 50Hz
3Capacity of powermain power:55KW
4Speed(as 1000*2000mm):20-30 pieces/min
5Total weightApprox.45 tons
6DimensionApprox.(L*W*H)for roll forming machine:Approx 23m*6m ( according to the using)
7Unwinding directionleft to right facing the console
8Cut stylePneumatic Shearing


Product details description


Main power:55kw

Speed :(as 1000*2000mm): 20-30 pieces/min

Total weight:Approx.45 tons

Dimension:Approx 23m*6m ( according to the using)

Hydraulic single arm de-coiler with hydraulic feeding trolley:




15-axis dual-type precision leveling machine:




Pit:




Correction device with Nine-roller servo sizing machine:




Pneumatic Shearing machine




Conveyor belt:




Lifting palletizer




Product parameters table

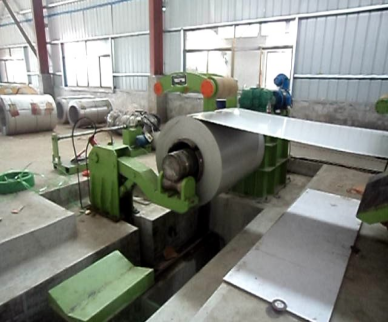

Hydraulic single arm de-coiler with hydraulic feeding trolley

structure     The machine is a single-head cantilever hydraulic expansion and contraction unwinder, which is composed of a main shaft part and a transmission part.

(1) The main shaft part is the core part of the machine. Its four blocks are connected to the sliding sleeve through T-shaped slanting blocks and are simultaneously sleeved on the hollow spindle. The core is connected to the sliding sleeve. The fan blocks expand and contract at the same time. When the fan block shrinks, it is beneficial to roll up, and when the fan block is opened, the steel coil is tightened to complete the unwinding.

(2) The pressure roller is located behind the unwinder. The pressing arm is controlled by the oil cylinder to drive the cantilever to be pressed down and picked up. When feeding, the cantilever pressing roller is pressed to press the steel coil to prevent loosening and facilitate the feeding.

(3) The transmission part is located outside the frame. The motor and reducer drive the main shaft of the unwinder through the gear to rotate, and it can also realize unwinding and rewinding.

Technical Parameters

(1) Steel coil width: 500mm-1500mm

(2) Steel coil weight: 10T

(3) Cylinder stroke: 600mm

(4) Motor running: 2.2kw

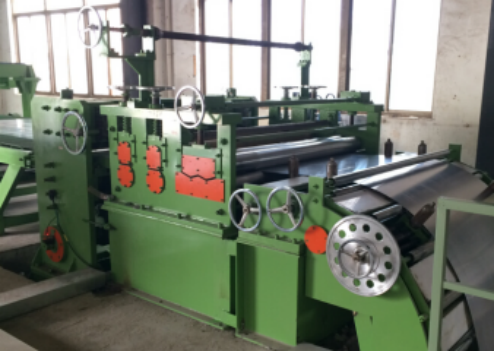

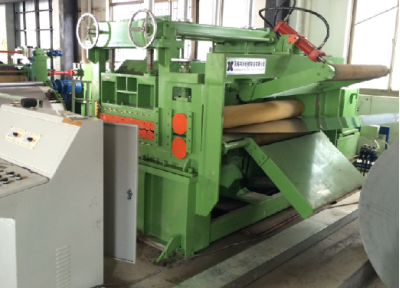

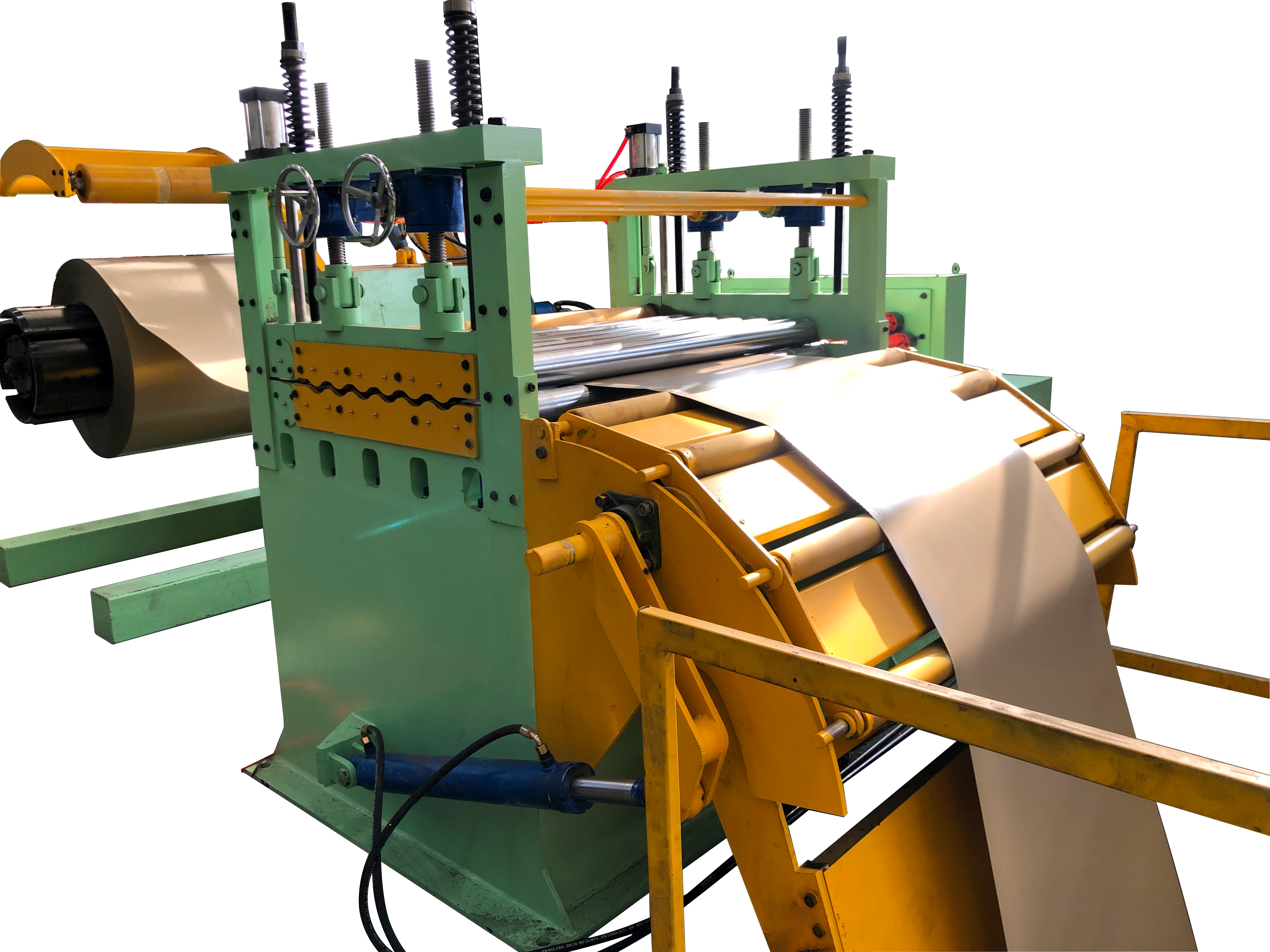

15-axis dual-type precision leveling machine

Leveling rollers:15

Leveling roller diameter:120mm

Leveling roller material 45 # steel

Motor power: 22KW

The leveling effect is according to the first grade coil, except for scrap or secondary board.

Leveling roller material:45 # steel.

After tempering, quenching and grinding, the surface hardness reaches HRC58-62, and the surface finish is Ra1.6mm.

The upper row of work rolls are lifted vertically by a motor drive.

Roller bearings are used for the work roll bearings, which have a high bearing capacity and a long service life.

Main force system: One motor is driven centrally and driven by the universal joint of the reducer transmission box.

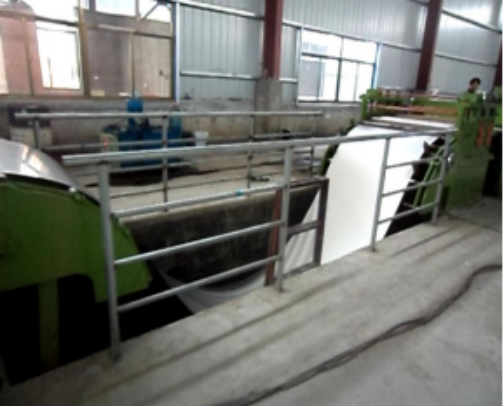

Pit

It uses the 2 groups of magic eyes to control the speed buffer between decoiler and slitting machines.

Magic eye is controlled by PLC.

Function: it is used to eliminate the different speed and make the plates which in wrong rail to back the right way. At first, it is used the oil cylinder to lifting the supporting and transition plates to make the head pass. When working, the transition and supporting plates lift down, the steel plates will be stored in the pit.

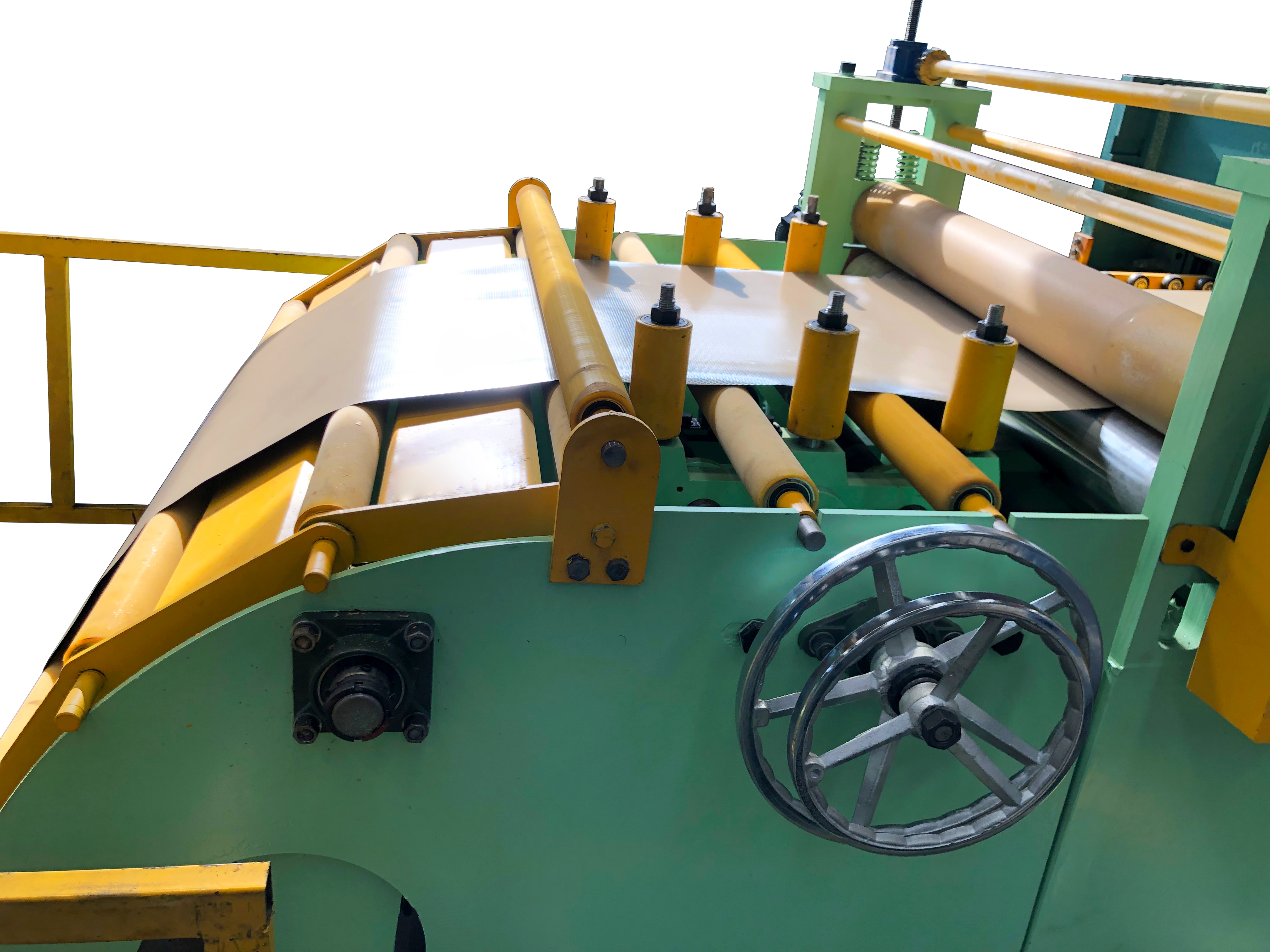

Correction devicewithNine-roller servo sizing machineCorrection device: 1. Guided by vertical guide rollers. Adjust the distance between the two guide rollers manually. 2. Minimum guide width 500mm Nine-roller servo sizing machine specifications 1. Feeding rollers:9 2. Leveling rollerdiameter:120mm 3. Fixed-length roller diameter:160mm 4. Roller material 45 # steel 5. Servo motor: 11kw

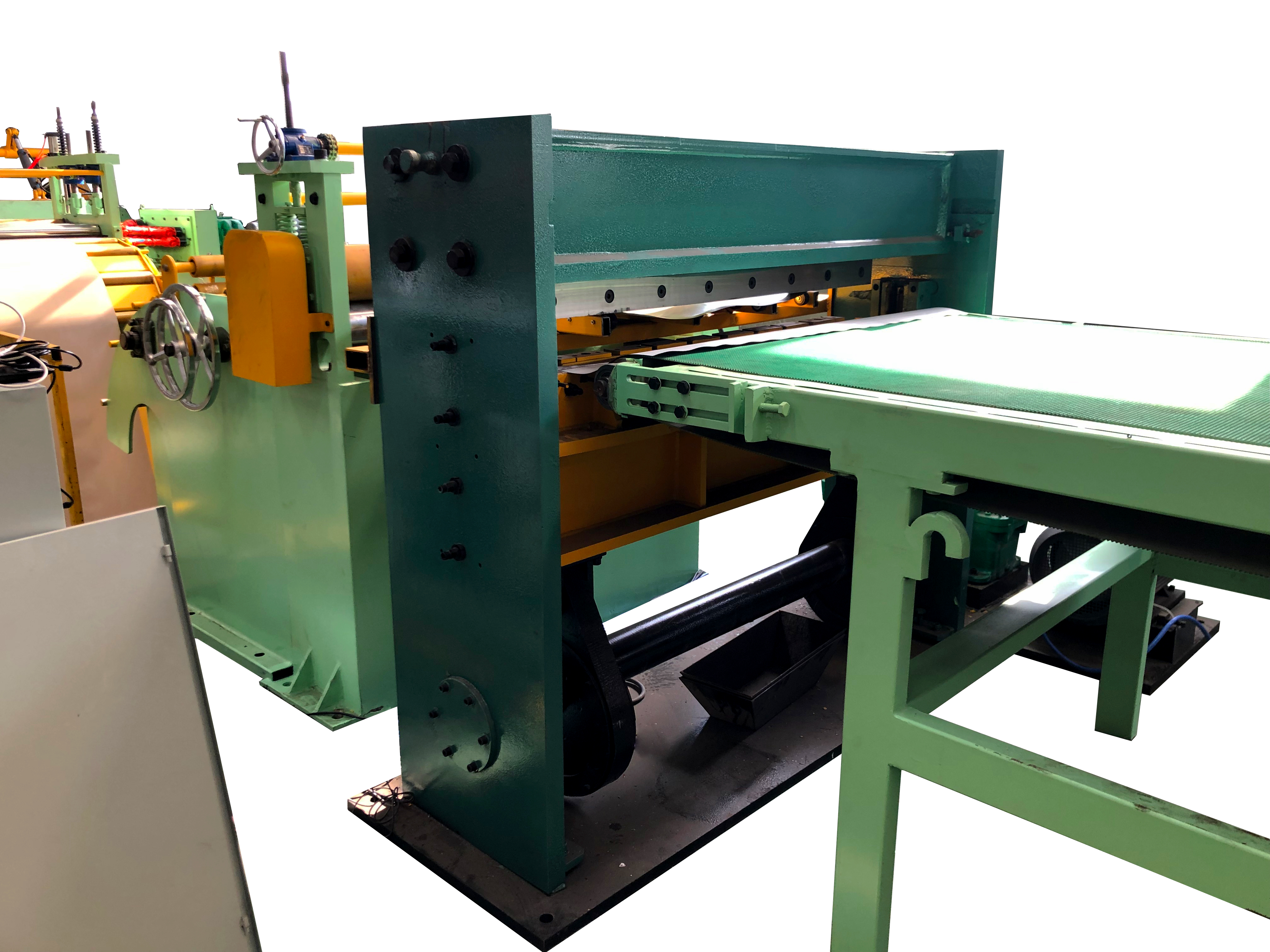

Pneumatic Shearing machinePneumatic Shearing machine: It is mainly composed of left and right brackets, connecting rods, upper and lower tool holders, tables, driving motors, etc. (1) Maximum cutting thickness: 3mm (2) Shearing width: 1600mm (3) Motor power: 11KW

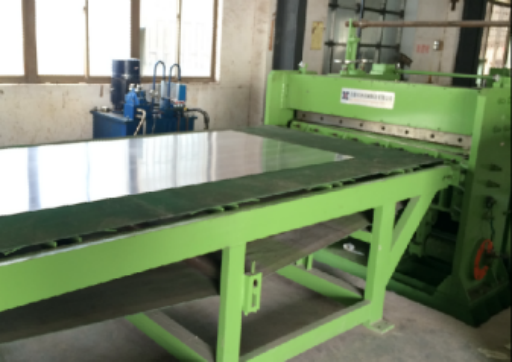

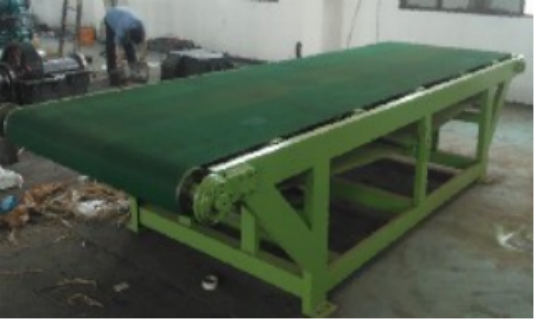

Conveyor belt:Conveyor belt: 1. Belt length:7500mm 2. Width:1450mm 3. Motor 2.2kw (frequency control)

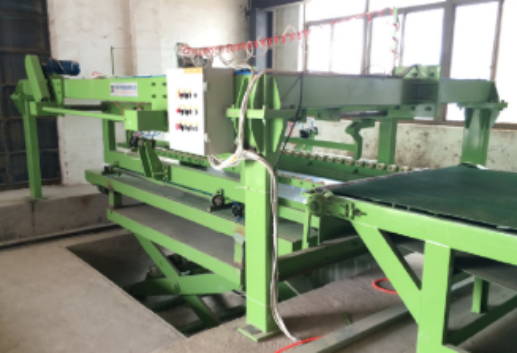

Lifting palletizer

Lifting palletizer (Note: 4000mm lifting position, source of gas)

The blanking machine mainly carries out the blanking of the sheet, which is composed of a horizontally moving rack body and a vertical baffle.

The horizontal moving frame is manually adjusted according to different board widths, and the vertical baffle is adjusted according to different board lengths.

The stacking machine is mainly composed of stacking cylinder walking rollers and motors. Its function is to neatly stack the blanked plates. The main technical parameters (1) Height of blanking rack: 2100mm (2) Total length of blanking rack: 4300mm (3) Total width: 2300mm (4) Load-bearing rack: 10000kg
