Technical parameters
- The auto welding machine outline dimension: 6300mmx1500mmx800mm（Lx HxW）
- The machine weight about : 1200 kgs
- The machine suits welding frame size :
- Fame length:600-4500 mm. Fame height:50-160 mm. Frame width:40-50 mm

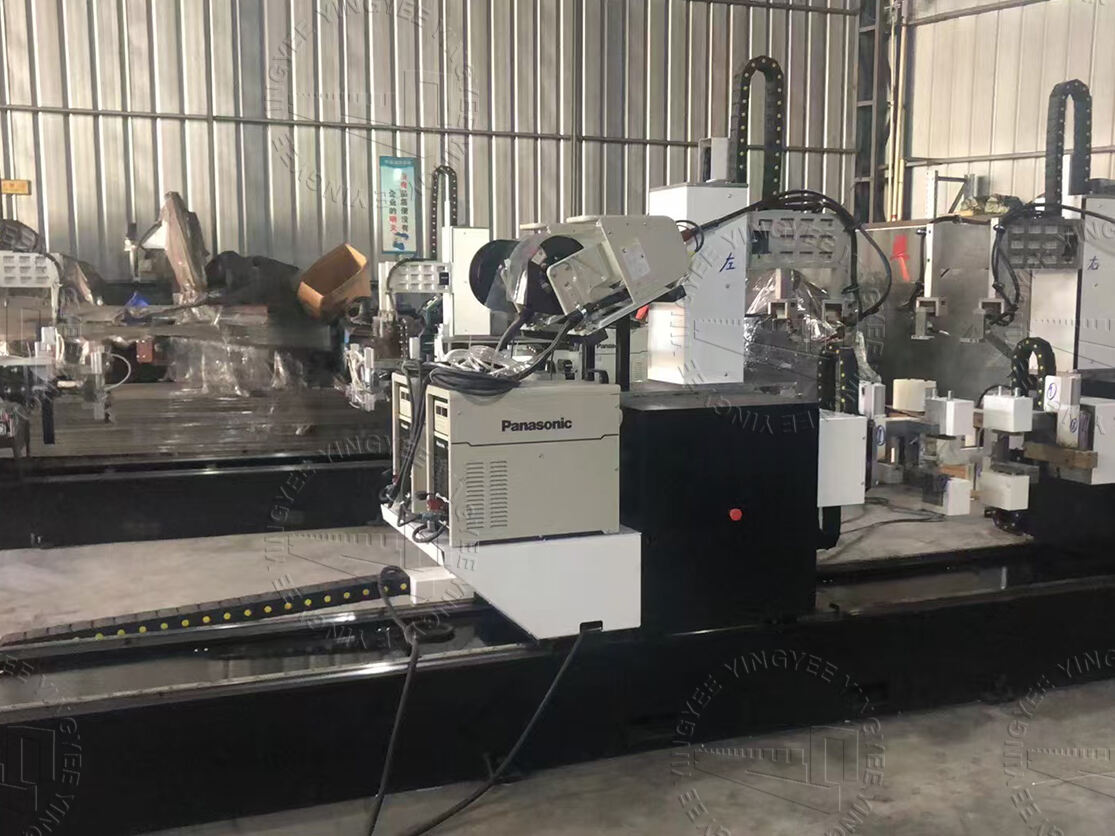

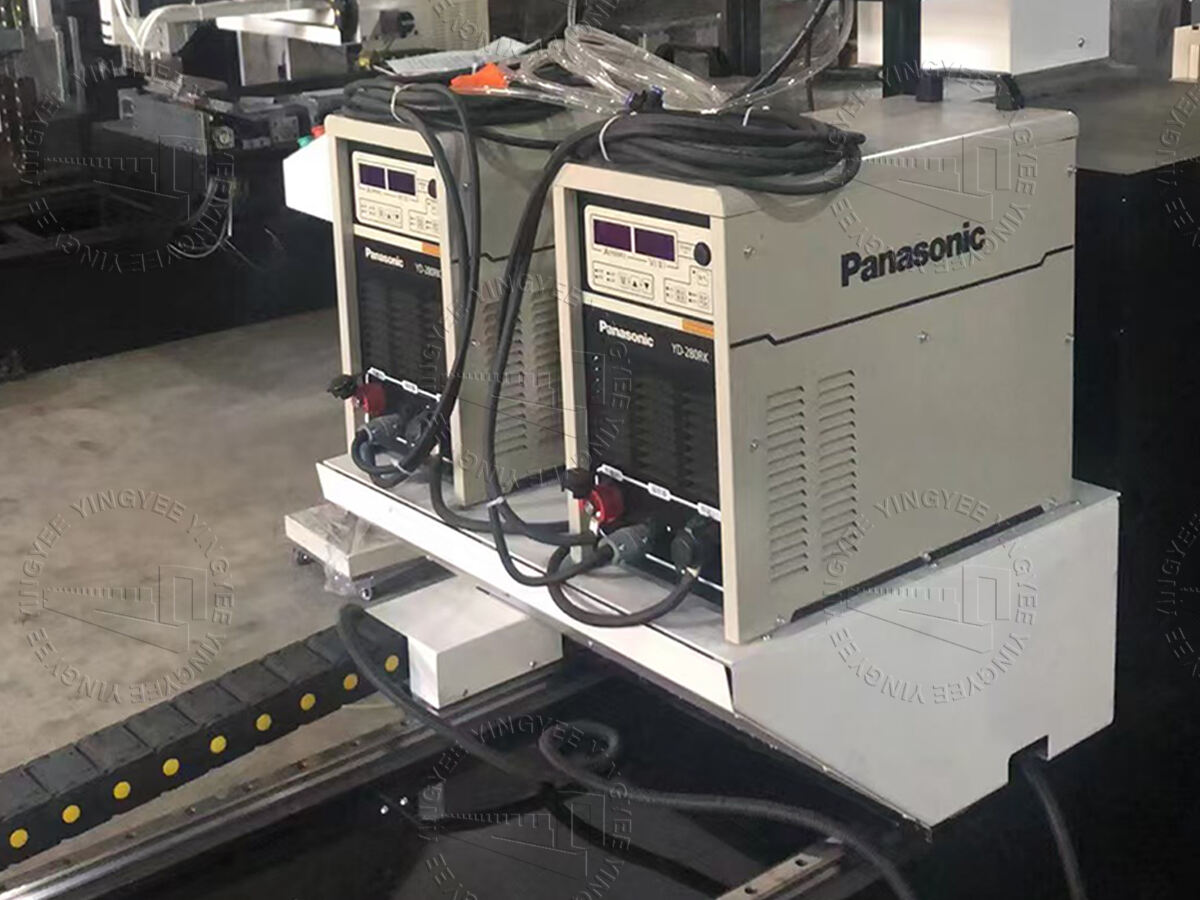

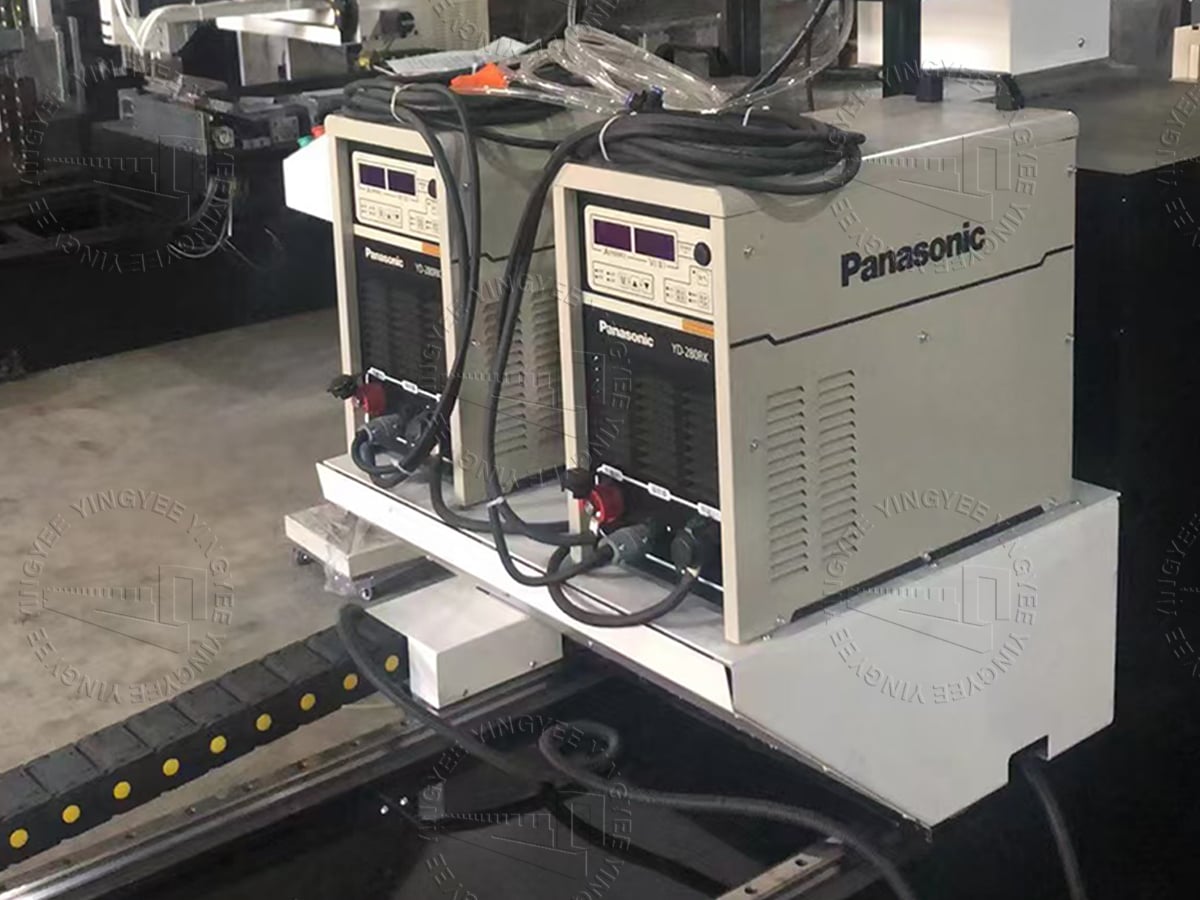

- The machine include 4sets KD315 welding machine with PLC and touchscreen and stepper motor *4 sets,
- Four side welding total. Each time welding two side.
- Stepper motor tracking welding , it can suits non-flat material face welding .

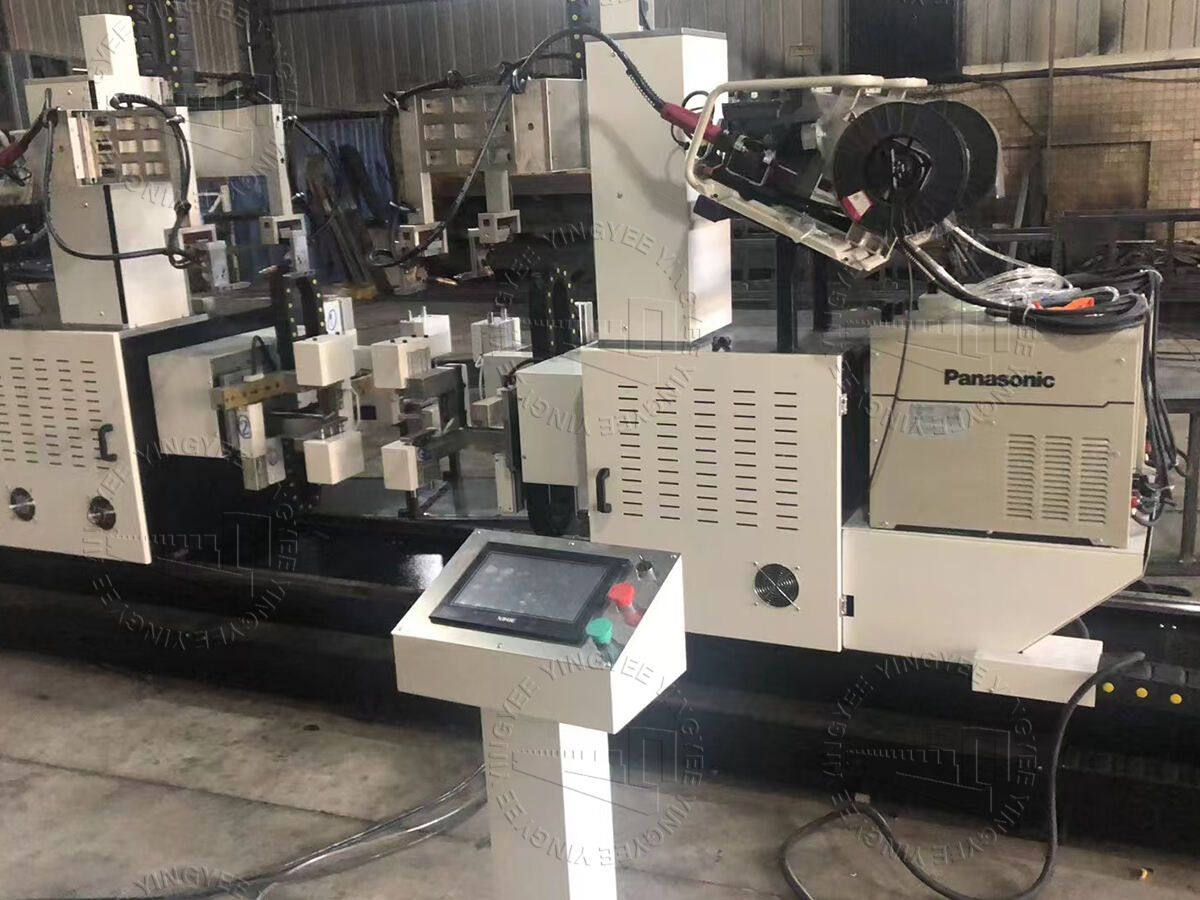

- The PLC brand Panasonic. Touchscreen brand Mitsubishi . up and down motor brand Mitsubishi. Stepper brand SHANGHAI SIHONG
- Different length Fame adjust by guide.

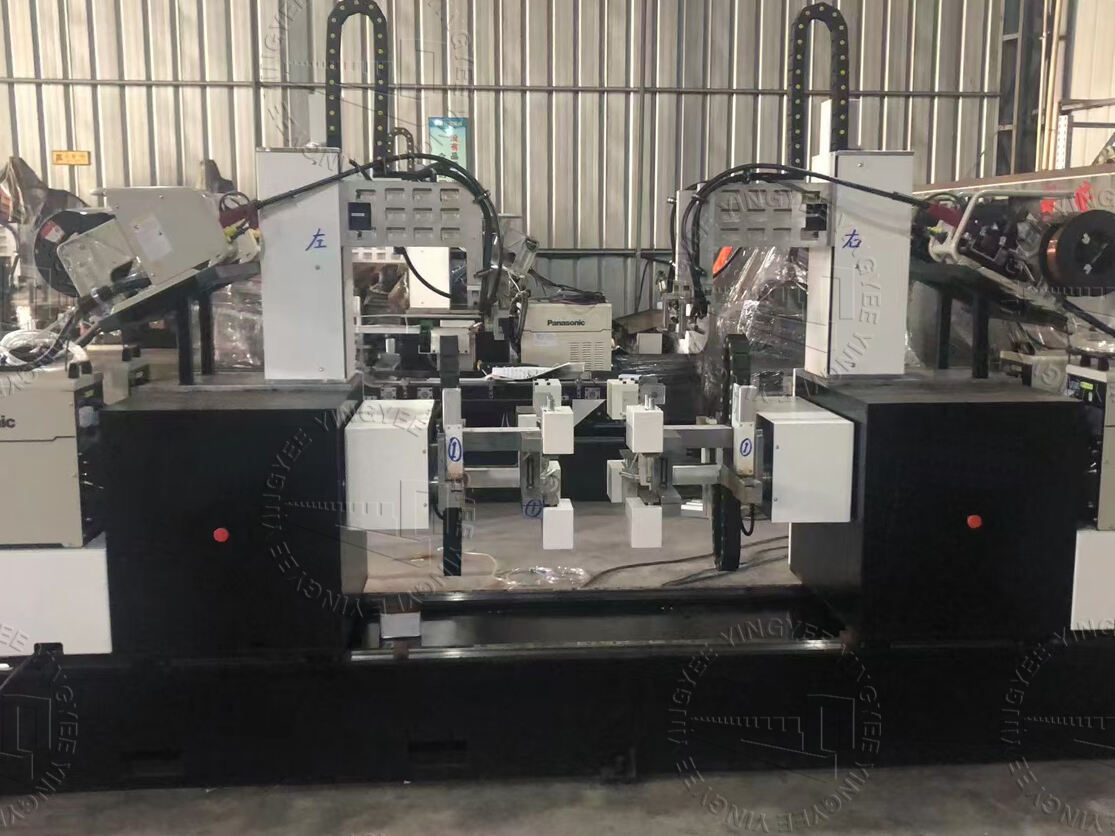

- Auto frame gripping holder and auto tipping gear and Connection gripping holder.
- Welding speed about 30 pc/sec

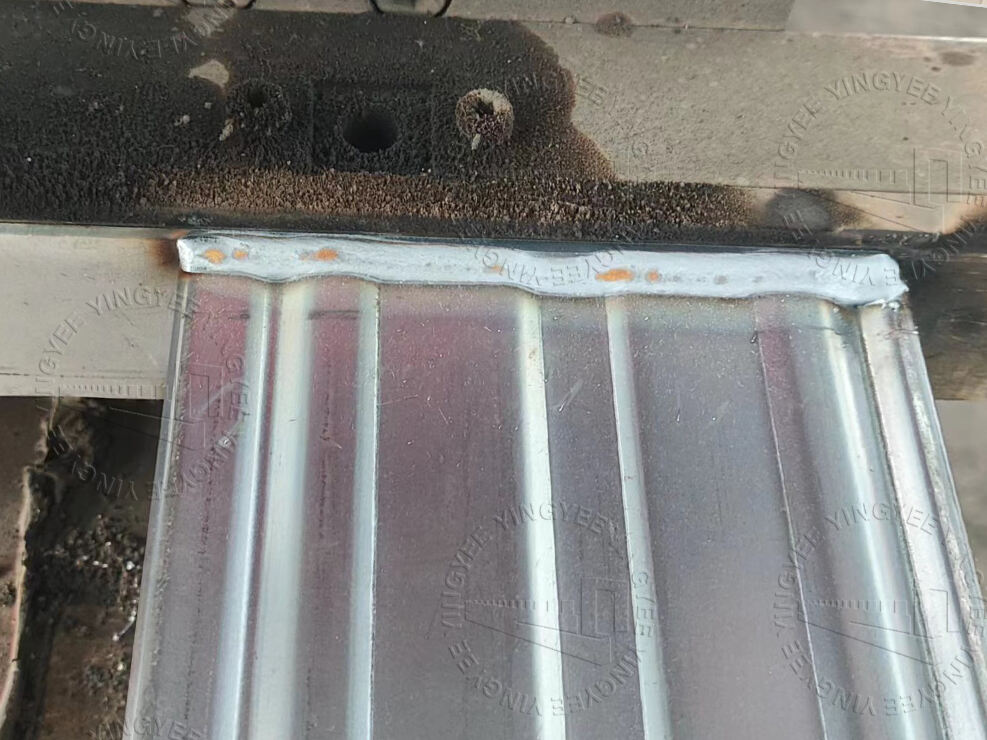

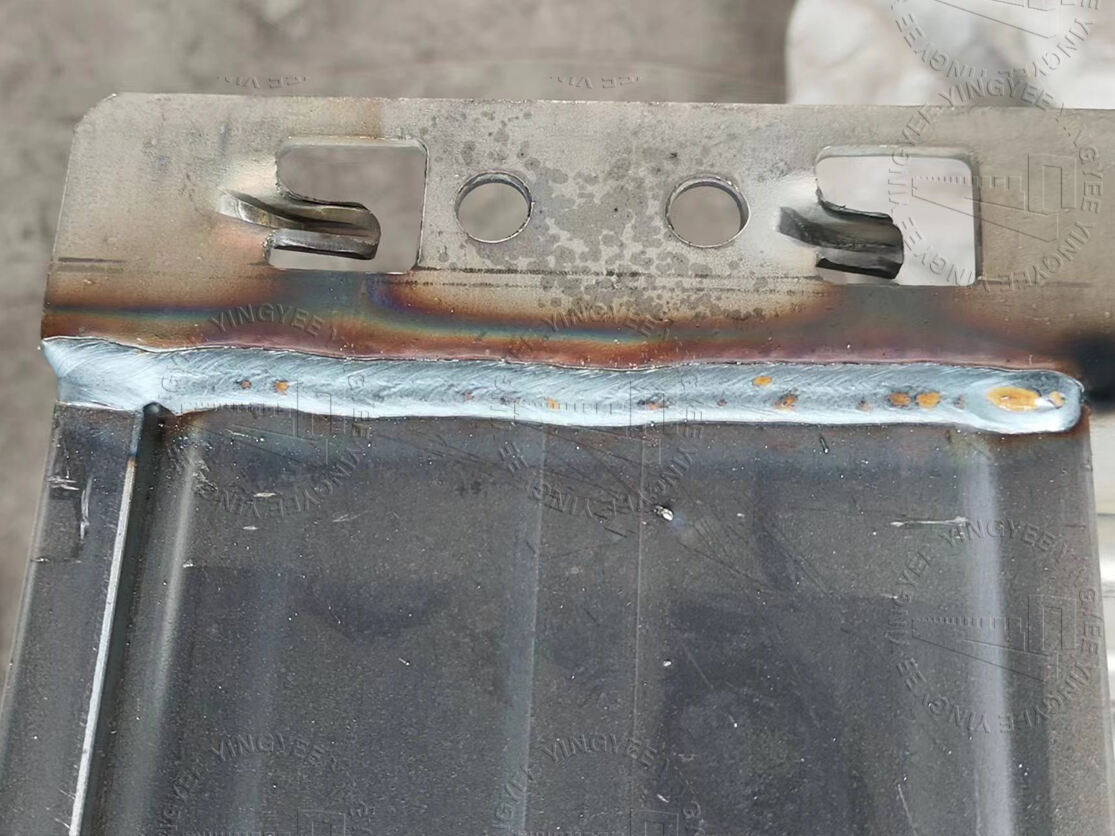

- Welding seam width 3-4mm.
- welding stick diameter 0.8mm
- rate of final products more than 95%.
Equipment production process
- Adjust the welding platform and welding part according to the size of the frame .
- Put the two connect part on machine gripping holder part
- Then put the frame on the machine.
- Frame gripping holder catch the frame.
- Auto welding part start work. First two side welding .
- Frame gripping holder rise up.
- After two side welding finish then machine auto flip 90 degrees
- Auto welding start again welding the other two side.
- After welding finish .the frame flip back.
- Then frame holder back . worker take out the finish product.
