Product brief description


Basic Parameters Material

1. Thickness:0.18mm PPGI/0.28mm GI

2. Input width:According to drawing

3. Effective width:According to drawing

4. material:PPGI strips/ GI strips

Power supply 380V, 50Hz, 3 phase (according to customer request)
Capacity of power

1. main power: 7.5KW*2

2. hydraulic power:7.5KW

Speed Forming speed:40m/min
Total weight Approx.around 5-6 tons
Dimension Approx.(L*W*H) 12m*1m*1.2m
Stands of rollers 16 rollers
Cut style Hydraulic cutter


Product details description


Decoiler

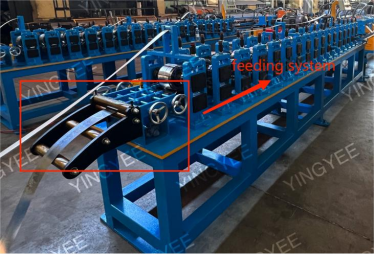

Feeding guide system

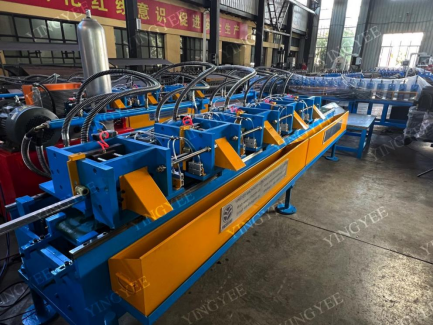

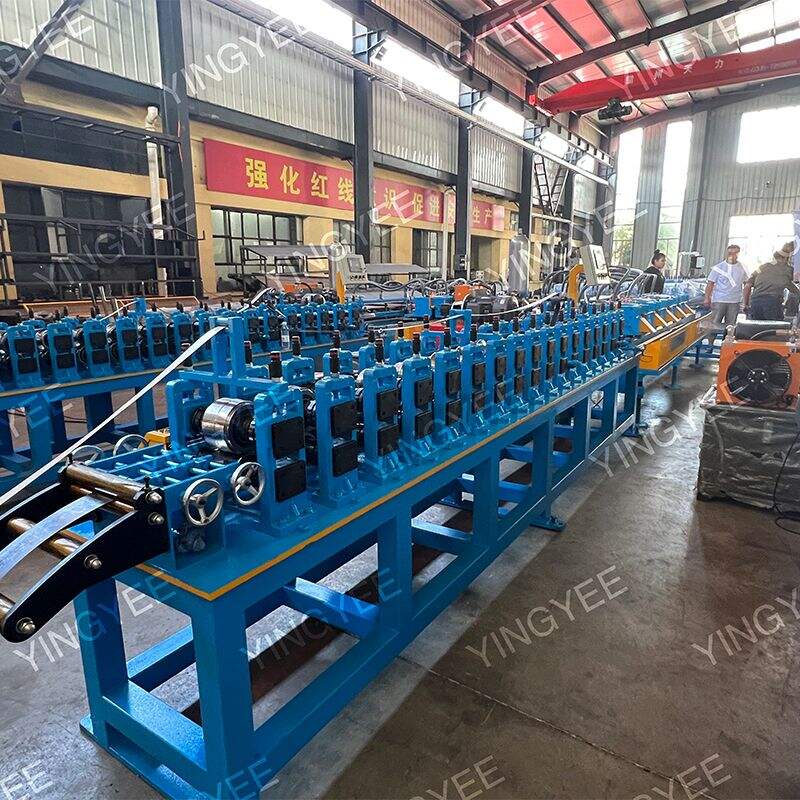

Cross Tee roll forming machine

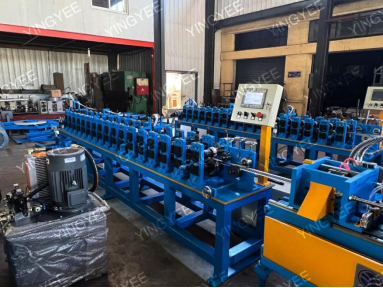

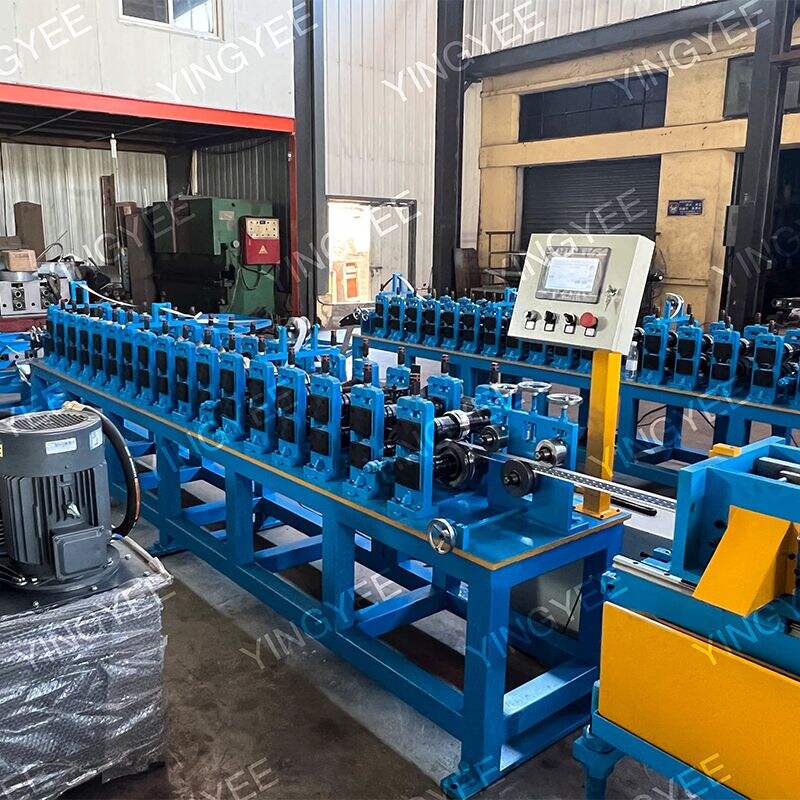

PLC control and touching screen

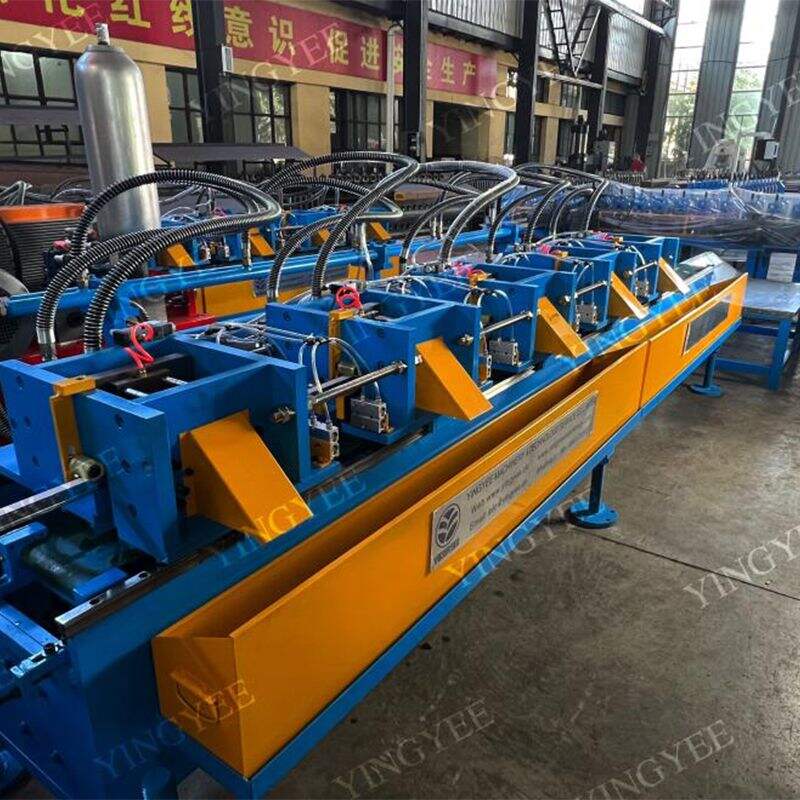

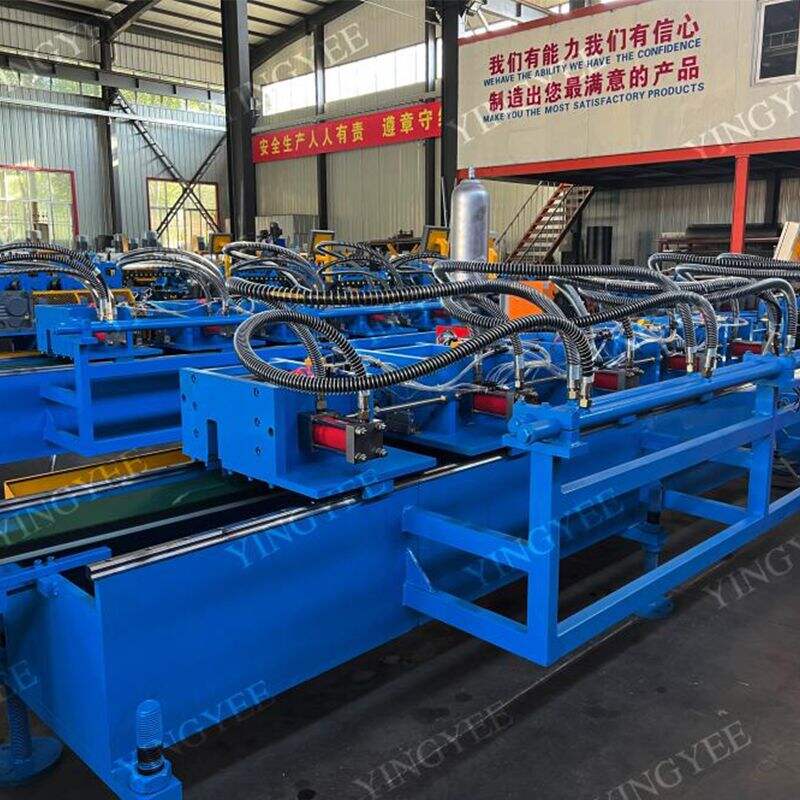

Automatic punching and cutting device with 1.5m receiving table




Product parameters table


cross Tee roll forming machien
Part name Technical specification
Decoiler Capacity:2 tons manual decoiler (horizontal type)*2
Feeding guide system Input width adjustable
Cross Tee roll forming machine

1. Matching material: PPGI strips/GI strips

2. Thickness:0.18mm PPGI/0.28mm GI

3. Main power:7.5kw*2 Hydraulic power:7.5kw

4. Machine structure:Torrist Stand

5. Forming speed:No stop cutting with punching, it is 40m/min. 5 sets punching mould device. Once punch and cut 4 pcs for 600 cross tee.Once punch and cut 2 pcs for 1200 cross tee.

6. Shaft material and diameters:#45 steel and 50mm (Made the steel for cementation)

7. Roller material:Cr12 with well heat treatment, 58-62

8. Forming Steps:16 steps for forming

9. Driven:Chain 10.K reducer

PLC control and touching screen PLC control
Automatic punching and cutting device 5 sets punching mould device. Once punch and cut 4 pcs for 600 cross tee, 2 PCS for 1200mm cross tee.
Receiving table About 1.5 meters long
Electronic part

1. Inverter:Zoncn

2. Encoder:Japan Omron(Japan)

3. Servo motor:Shanghai Zoncn low-voltage apparatus CHNT (China)

4. Voltage:380V 50Hz 3 phase

Equipment component

Manual decoiler                                            x2sets

Feeding guide system                                   x1set

Mainly forming system                                 x1set

Auto punch hole                                           x1set

Hydraulic station with cool fan.                    x1set

PLC control and touching screen                  x1set

Receiving table                                              x1set
