Main tee production line

Main tee production line

  • Overview
  • Parameter
  • Inquiry
  • Related Products

Product brief description


Basic Parameters Material

1. Thickness:0.18mm PPGI/0.28mm GI

2. Input width:According to drawing

3. Effective width:According to drawing

4. material:PPGI strips/ GI strips

Power supply 380V, 50Hz, 3 phase (according to customer request)
Capacity of power

1. main power: 7.5KW*2

2. hydraulic power:7.5KW

Speed Forming speed:40m/min
Total weight Approx.Around 5- 6 tons
Dimension Approx.(L*W*H):15m*1m*1.2m
Stands of rollers 18 rollers
Cut style Hydraulic cutter


Product details description

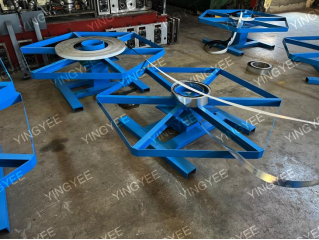

Decoiler

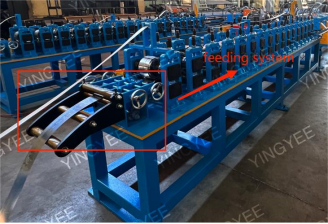

Feeding guide system

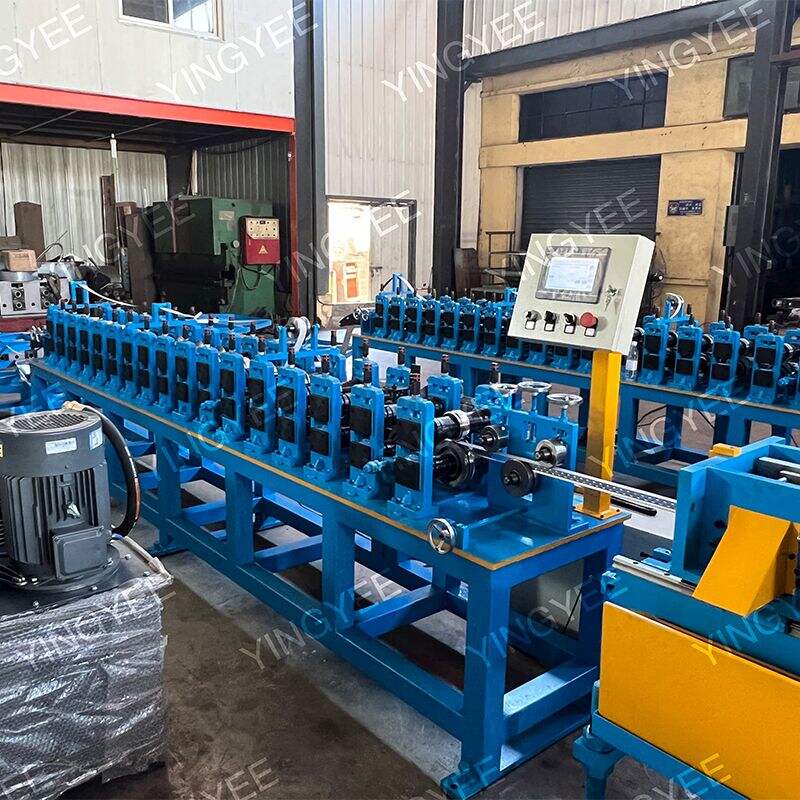

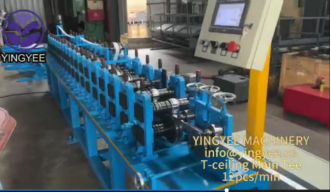

Main Tee roll forming machine

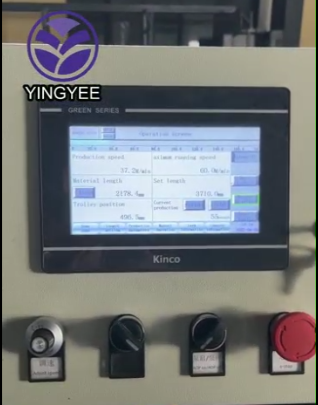

PLC control

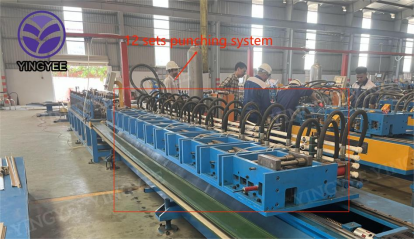

Auto punching hole device with 5m receiving table




Product parameters table


Main Tee roll forming machine
Part name Technical specification
Decoiler Capacity:2 tons manual decoiler (horizontal type)*2
Feeding guide system Input width adjustable
Main Teeroll forming machine

1. Matching material: PPGI strips/GI strips

2. Thickness:0.18mm PPGI/0.28mm GI

3. Main power:7.5kw*2, Hydraulic power:7.5kw

4. Machine structure:Torrist Stand

5. Forming speed:No stop cutting with punching, it is 40m/min. 12 sets punching mould device. Once -punch and cut for length 3600mm.

6. Shaft material and diameters:#45 steel and 50mm (Made the steel for cementation)

7. Roller material:Cr12 with well heat treatment, 58-62

8. Forming Steps:18 steps for forming

9. Driven:Chain 10.K reducer

PLC PLC control and touching screen
Cutting servo motor control without stop Material of cutter blade:Cr12 mould steel with quenched treatment, HRC 58-62℃
Delivering table About 3 meters long
Auto punching hole device 12 sets punching mould device. Once -punch and cut for length 3600mm.
Receiving table About 5 meters long
Electronic part

1. Inverter:Zoncn

2. Encoder:Japan Omron(Japan)

3. Servo motor:Shanghai Zoncn low-voltage apparatus CHNT (China)

4. Voltage:380V 50Hz 3 phase

Equipment component

Manual decoiler                                                      x2sets

Feeding guide system                                             x1set

Mainly forming system                                           x1set

Cutting servo motor control without stop             x1set

Auto punching hole device                                    x1set

Hydraulic station with cool fan.                             x1set

PLC control and touching screen                           x1set

Receiving table                                                       x1set
